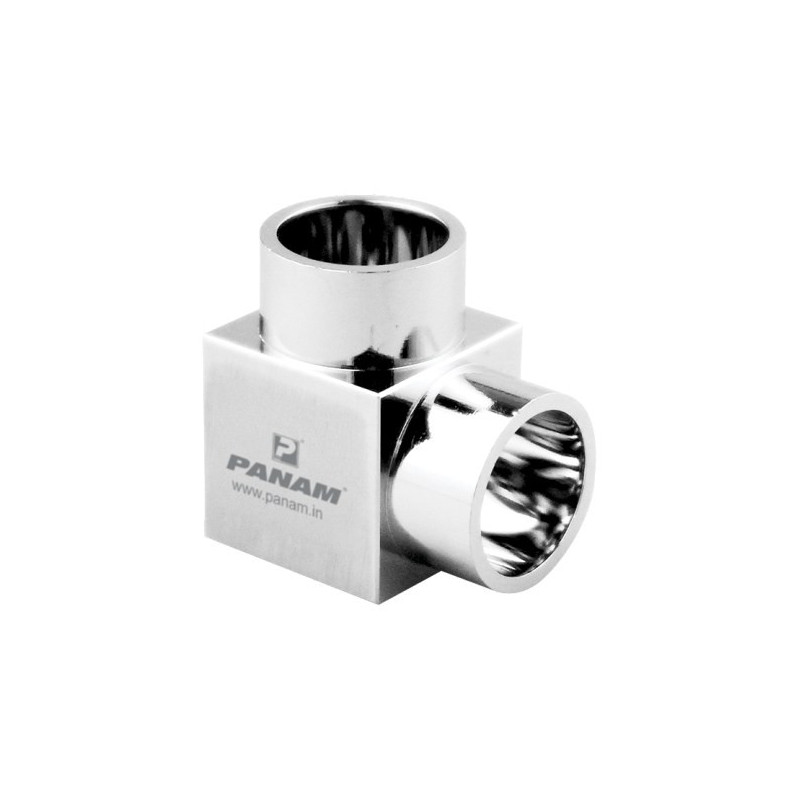

PANAM High and Ultra High Purity Weld Fittings (Micro and Long Weld, up to 8,500 psi)
Orbital weld fittings for high and ultra high purity gas systems: micro weld and long weld unions, elbows, tees, crosses, tribows and weld rings, 1/8" to 1" and 6 to 18 mm. 316L, 316L VAR or VIM-VAR, electropolished to Ra 5 μin (0.13 μm), ISO Class 5 cleanroom packing. Up to 8500 psig.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
PANAM high and ultra high purity fittings are designed for critical applications requiring stringent control of particles, contaminants and process media purity. They have a smooth radius design for improved flow and reduced particle generation, a precision machined bore matched to the tube ID, and burr-free square tube ends for accurate weld alignment with manual or automatic orbital welding.
Two series are offered: Micro Weld (short) fittings and Long Weld fittings, in reducing unions, 90 degree and reducing union elbows, 45 degree elbows, tribows, union tees, reducing tees, extended branch leg and extended run leg union tees, union crosses and weld rings.
Three cleaning levels are available: standard (Ra 15 μin, mechanical polishing, individually bagged), high purity (Ra 10 μin, electropolished, double bagged in an ISO Class 5 cleanroom) and ultra high purity (Ra 5 μin, electropolished, double bagged in an ISO Class 5 cleanroom). Each fitting is laser marked with PANAM, material grade and traceability ID.
Key features
- Smooth radius design for improved flow and reduced particle generation
- Bore matched to tube ID, burr-free square ends for orbital welding
- Uniform wall thickness for repeatable welds
- 316L SS, 316L VAR and 316 VIM-VAR options
- Electropolished wetted surfaces down to Ra 5 μin (0.13 μm)
- Assembly and double bagging in ISO Class 5 (Class 100) cleanroom
- Laser marked with PANAM, material grade and traceability ID
Standard specification
| Series | Micro Weld (MH) and Long Weld (LH) |
|---|---|
| Sizes | 1/8" to 1" and 6 mm to 18 mm tube OD (tube butt weld) |
| Working pressure | Up to 8500 psig (585 bar) for 1/8"; e.g. 1/4" 5100 psig (351 bar), 12 mm 2902 psig (200 bar) |
| Temperature | -198 °C to 538 °C (-325 °F to 1000 °F) |
| Materials | SS 316, SS 316L, 316L VAR, 316 VIM-VAR |
| Material specifications | 316L / ASTM A479; 316L and 316L VAR / SEMI F20 |
| Surface roughness | Ra 15 μin (standard), Ra 10 μin (high purity), Ra 5 μin (ultra high purity) |
| Packing | Individually bagged (standard) or double bagged in ISO Class 5 cleanroom |
Range overview
| Type | Series | Example part number | Working pressure |
|---|---|---|---|
| Reducing union | Micro weld | PRU-MH-4TB-2TB-SS | 5100 psig (351 bar) |
| 90° union elbow | Micro weld | PUE-MH-2TB-SS | 8500 psig (585 bar) |
| Reducing 90° union elbow | Micro weld | PRUE-MH-8TB-4TB-SS | 3700 psig (254 bar) |
| 45° elbow | Micro weld | PLME-MH-4TB-SS | 3300 psig (227 bar) |
| Tribow | Micro weld | PT-MH-4TB-SS | 5100 psig (351 bar) |
| Union tee | Micro weld | PUT-MH-M06TB-SS | 6095 psig (420 bar) |
| Extended branch / run leg union tee | Micro weld | PEBLUT-MH-4TB-SS | 5100 psig (351 bar) |
| Union cross | Micro weld | PUC-MH-4TB-SS | 5100 psig (351 bar) |
| Reducing union | Long weld | PRU-LH-16TB-12TB-SS | 2400 psig (165 bar) |
| 90° union elbow | Long weld | PUE-LH-12TB-SS | 2400 psig (165 bar) |
| Reducing tee | Long weld | PRT-LH-8TB-4TB-SS | 3700 psig (254 bar) |
| Weld ring | Long weld | PWR-LH-4T-SS | - |
Part numbers combine P (PANAM), fitting type, series (M micro weld, L long weld), purity (H high purity, U ultra high purity), size and connection type (TB = tube butt weld) and material (SS 316, SSL 316L, 6V 316L VAR, 6VV 316 VIM-VAR). Example from the catalogue: PRU-MH-4TB-2TB-SS is a micro weld, high purity reducing union, 1/4" x 1/8" tube butt weld, in SS 316.
Applications
High and ultra high purity gas delivery, specialty and analytical gas systems and other contamination sensitive applications.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-UHP-WF
Data sheet
- Manufacturer series
- Micro Weld and Long Weld
- Product type
- High purity orbital weld fitting
- Size range
- 1/8 in to 1 in and 6 to 18 mm
- Pressure rating
- Up to 8500 psig
- Material
- 316L SS and 316L VAR
- Origin
- India
