PANAM Flange Adapters (ASME, EN and JIS Flange x Tube Fitting, up to 6,000 psi)
One piece forged flange adapters linking pipe flanges directly to PANAM tube fittings without threading or welding. ASME B16.5 NPS 1/2 to 2 Class 150 to 2500, EN 1092-1 DN 15 to 50 PN 16 to 100, JIS B2220. Tube 1/16" to 2" and 3 to 50 mm. SS 316 standard, alloys. Up to 6000 psi.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

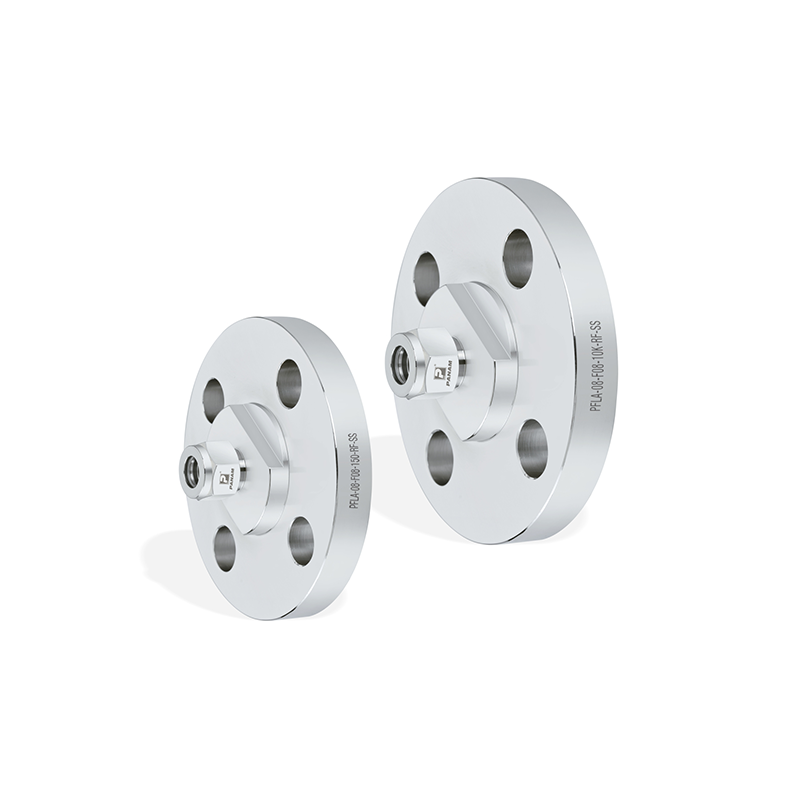

PANAM flange adapters provide a simple, safe interface between pipe flanges and instrumentation fittings, eliminating the need for pipe threading or welding and the extra connections between process piping and instrument lines. The design integrates a PANAM tube fitting end with a standard flange in a one piece, integrally machined forged body with wrench flats.
Flange ends are dimensioned to ASME B16.5, EN 1092-1, DIN EN 1092-1 and JIS B2220, with raised face, flat face, ring type joint (RTJ) and tongue and groove sealing faces. Bore through versions are available. Pressure ratings follow ASME B16.5 for ASTM A182 F316, from 275 psig (Class 150) to 6000 psig (Class 2500) at -20 to 100 °F, limited by the lower rated end.
Adapters are available in materials compliant with NACE MR0175 / ISO 15156 and NACE MR0103 / ISO 17495-1 for sour gas, with heat code traceability, laser marking where possible and EN 10204 Type 3.1B material test certificates.
Key features
- One piece integrally machined forged body
- Transition from flanged piping to tubing without threading or welding
- Tube fitting ends up to 2" imperial and 50 mm metric
- ASME, EN, DIN and JIS flange standards
- Raised face, flat face, RTJ and tongue and groove sealing faces
- Wrench flats for easy tube fitting installation
- EN 10204 3.1B certificates, heat code traceability, laser marking
Standard specification
| ASME B16.5 | NPS 1/2 to NPS 2, Class 150 to Class 2500 |
|---|---|
| EN 1092-1 / DIN EN 1092-1 | DN 15 to DN 50, PN 16 to PN 100 |
| JIS B2220 | DN 15 to DN 50, 10K to 63K |
| Tube fitting end | 1/16" to 2" and 3 mm to 50 mm |
| Pressure (F316, -20 to 100 °F) | Class 150: 275 psig; 300: 720; 400: 960; 600: 1440; 900: 2160; 1500: 3600; 2500: 6000 psig (413.7 bar) |
| Standard material | ASTM A182 F316 (EN 1.4401) |
| Other materials | F316L, F44 (6Mo), F51, F60, F53, F55, Alloy 400, 600, 625, 800, 825, C-276 |
| Sour service | Available to NACE MR0175 / ISO 15156 and NACE MR0103 / ISO 17495-1 |
| Certification | EN 10204 Type 3.1B test certificates |
Flange standards and examples
| Flange standard | Class | Example part number |
|---|---|---|
| ASME B16.5 RF | Class 150 | PFLA-08-F08-150-RF-SS |
| ASME B16.5 RF | Class 300 | PFLA-08-F08-300-RF-SS |
| ASME B16.5 RF | Class 400 | PFLA-06-F32-400-RF-SS |
| ASME B16.5 RF | Class 600 | PFLA-08-F08-600-RF-SS |
| ASME B16.5 RF | Class 900 | PFLA-06-F32-900-RF-SS |
| ASME B16.5 RF | Class 1500 | PFLA-08-F08-1500-RF-SS |
| ASME B16.5 RF | Class 2500 | PFLA-08-F08-2500-RF-SS |
| EN 1092-1 | PN 16 | PFLA-M12-20-PN16-SS |
| EN 1092-1 | PN 40 | PFLA-M12-15-PN40-SS |
| EN 1092-1 | PN 63 / PN 100 | PFLA-M12-25-PN100-SS |
| JIS B2220 RF | 10K | PFLA-04-15-10K-RF-SS |
Part numbers combine PFLA, tube fitting size (01 to 32, or M03 to M50), nominal flange size (F08 to F32 for NPS, 15 to 50 for DN), pressure class, sealing face (RF, FF, RTJ, TG), material and options (SG for NACE MR0175, SGR for NACE MR0103, BT for bore through). Example from the catalogue: PFLA-08-F16-150-RTJ-MO-SG is a 1/2" tube x NPS 1" Class 150 RTJ flange adapter in Alloy 400 for sour gas service.
Applications
Direct connection of pressure instruments, transmitters and sampling lines to flanged process piping, vessels and pipelines in Oil and gas production, refineries, petrochemical and chemical plants, power generation, offshore installations and analyzer or instrument hook-ups.
Documentation
The manufacturer catalogue with full dimension tables and the ISO certificates of the manufacturer are in the attachments. Indicate the model or part number, size, connections, material, pressure rating and quantity in your quotation request.
PANAM-FLA
Data sheet
- Manufacturer series
- PFLA
- Product type
- Flange to tube fitting adapter
- Size range
- NPS 1/2 to 2 and DN 15 to 50
- Pressure rating
- Up to 6000 psi
- Material
- SS 316 standard (alloys on request)
- Origin
- India
