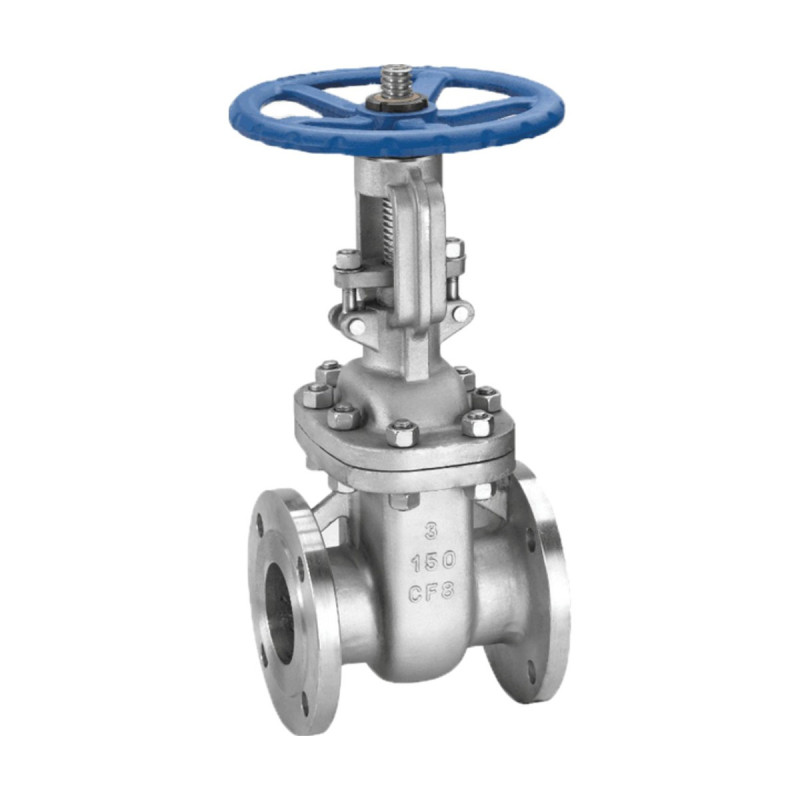

Stainless Steel Flanged Gate Valve (ANSI 150 to 900, JIS 10K / 20K, GB PN16 / 40, CF8 / CF8M)
Stainless steel OS&Y rising stem gate valve in CF8, CF8M, CF3M or duplex, available with ANSI Class 150 to 900, JIS 10K / 20K or GB PN16 / PN40 flanges, 1/2 to 24 in.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The stainless steel flanged gate valve is a bolted bonnet, rising stem wedge gate valve for isolation of corrosive liquids and gases. The cast stainless body and trim suit chemical, water treatment and offshore or coastal installations.
The same design is offered with ASME, JIS and GB flange drillings, so it can be matched to American, Japanese or Chinese standard piping.
Key features
- OS&Y rising stem with bolted bonnet
- Cast stainless body, disc and bonnet (CF8, CF8M, CF3M; SCS13 / SCS14 for JIS)
- Duplex 2205 and super duplex 2507 on request
- ASME Class 150 to 900, JIS 10K / 20K and GB PN16 / PN40 versions
- Handwheel or gearbox operation
- Pressure test, dimension check and PMI test before delivery
Technical data
| Type | Wedge gate valve; OS&Y rising stem; bolted bonnet |
| Size range | 1/2 to 24 in (DN15 to DN600); JIS 15A to 600A; catalogue tables 1/2 to 12 in |
| Pressure class | ASME Class 150 / 300 / 600 / 900; JIS 10K / 20K; GB PN16 (2-1/2 to 12 in) / PN40 (1/2 to 2 in) |
| Temperature range | -20 to +425 °C |
| Body material | CF8 (304) / CF8M (316) / CF3M / CF3; SCS13 / SCS14 / SCS16A (JIS); 2205 / 2507 |
| Trim / seat | Disc same as body; stem 304 or 316; stem nut bronze |
| End connection | Flanged RF |
| Operation | Handwheel; gearbox |
| Design standard | ASME B16.34 / API 600 / API 603; JIS B2071; GB/T 12234 |
| Face to face | ASME B16.10; JIS B2002 |
| Flange standard | ASME B16.5; JIS B2220; GB/T 9113.1 |
| Testing | API 600 / API 598; JIS B2071; GB/T 12234 (according to version) |
Materials
- Body, bonnet and disc: CF8 / CF8M (ASME and GB); SCS13 / SCS14 (JIS)
- Stem: 304 or 316
- Gasket: PTFE or 304 + graphite
- Packing: PTFE or flexible graphite
- Bolts and nuts: 304
- Stem nut: bronze; handwheel: ductile iron (FCD)
Applications
- Chemical and petrochemical process lines
- Water and wastewater treatment
- Oil and gas utilities with corrosive media
- General industrial piping requiring stainless construction
Standards and certification
Designed to ASME B16.34, API 600 and API 603 (ASME version), JIS B2071 (JIS version) or GB/T 12234 (GB version), with flanges to ASME B16.5, JIS B2220 or GB/T 9113.1 and face to face to ASME B16.10 or JIS B2002 according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-VLV-102
Data sheet
- Size range
- 1/2 to 24 in (DN15 to DN600)
- Body material
- CF8 / CF8M / CF3M / SCS13 / SCS14
- Valve type
- Wedge gate / OS&Y rising stem
- Pressure class
- Class 150 to 900; JIS 10K / 20K; PN16 / 40
- End connection
- Flanged RF
- Temperature range
- -20 to +425 °C
