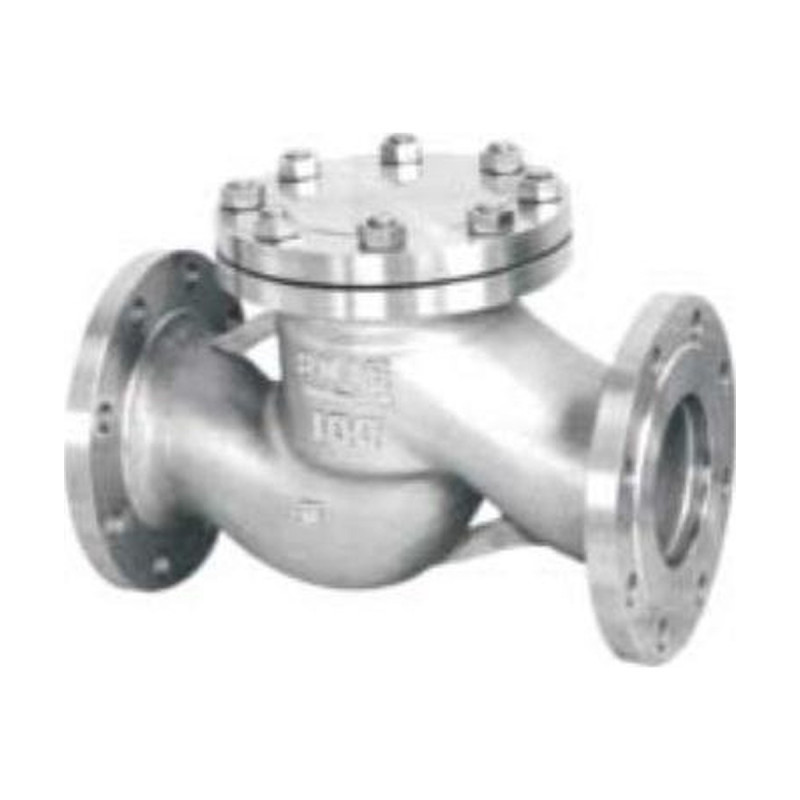

Flanged Lift Check Valve (PN16, Class 150, JIS 10K, WCB / CF8 / CF8M, 1/2 to 12 in)

The flanged lift check valve prevents backflow with a guided disc that lifts off the seat under forward flow and drops back onto it when flow stops. Its globe pattern body is suited to horizontal lines where a compact, positive closing check valve is required.

The valve is cast in WCB carbon steel with 13Cr trim or in CF8 / CF8M stainless steel, with PN16, Class 150 or JIS 10K flanges.

Key features

• Guided lift disc in globe pattern body
• Bolted bonnet for access to disc
• WCB+13Cr, CF8 or CF8M body and disc
• PN16, ASME Class 150 and JIS 10K flange versions

Technical data

Materials

• Body: WCB+13Cr, CF8 or CF8M
• Disc: WCB+13Cr, CF8 or CF8M
• Bonnet: WCB, CF8 or CF8M
• Gasket: PTFE or 304 + graphite
• Bolts and nuts: 35CrMo / 45 steel or 304

Applications

• Backflow prevention on water, oil and gas lines
• Pump discharge in industrial process systems
• Chemical and water treatment piping

Standards and certification

Designed to PN16, ASME Class 150 and JIS 10K flange dimensions according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.

Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.

Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
