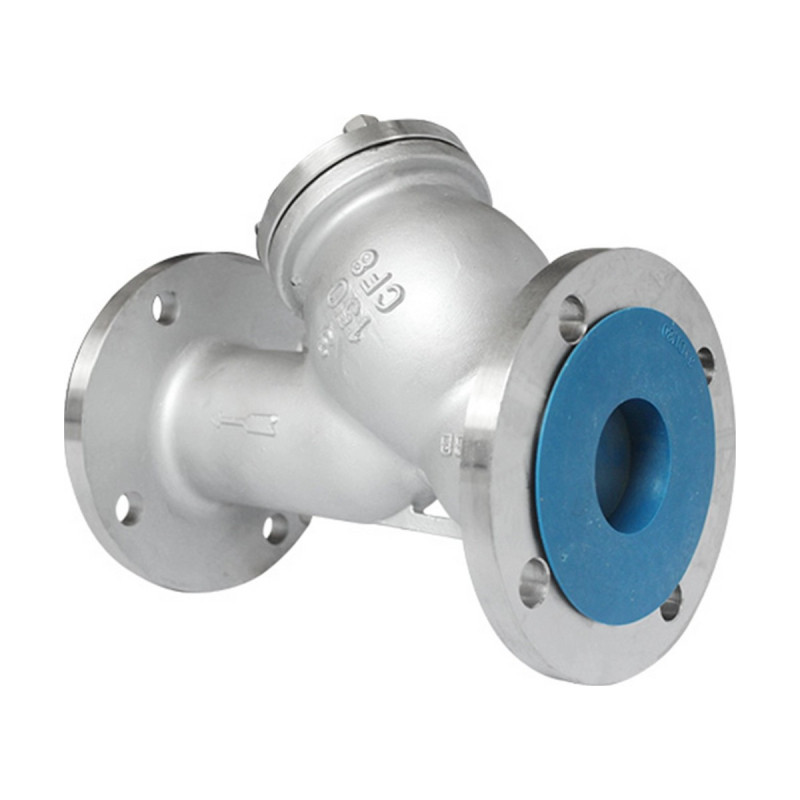

Flanged Y-Strainer (Stainless / WCB, ANSI 150 to 600, JIS 10K / 20K, PN16 / 25, 1/2 to 24 in)
Cast Y-type strainer with flanged ends and removable stainless screen, protecting pumps, valves and meters; CF8, CF8M or WCB body, ANSI Class 150 to 600, JIS or PN flanges, 1/2 to 24 in.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The flanged Y-strainer removes debris, scale and particles from liquid, gas and steam lines to protect downstream pumps, control valves and meters. The screen sits in the angled leg of the Y body and is removed through the bolted cover for cleaning without taking the strainer out of the line.
Bodies are cast in stainless steel or WCB carbon steel, with forged A105, F304, F316 or LF2 also listed, and a 40 mesh stainless screen as standard.
Key features
- Y pattern body with bolted bonnet and drain plug
- Removable stainless steel screen, 40 mesh standard or to requirement
- ASME Class 150 / 300 / 600, JIS 10K / 20K and PN16 / PN25 flanges
- PTFE or flexible graphite sealing
- API 607 fire-safe design available as an option
- Pressure test, dimension test and PMI test before delivery
Technical data
| Type | Y-type strainer; bolted bonnet |
| Size range | 1/2 to 24 in (DN15 to DN600); catalogue tables 1/2 to 12 in (DN15 to DN300) |
| Pressure class | ASME Class 150 / 300 / 600; JIS 10K / 20K; PN16 / PN25 |
| Temperature range | -29 to +425 °C |
| Body material | CF8 / CF8M / CF3 / CF3M / WCB / LCB; forged A105 / F304 / F316 / LF2 |
| Trim / seat | Screen 304 or 316, 40 mesh standard; plug 304 or 316 |
| End connection | Flanged RF |
| Design standard | ASME B16.34 |
| Face to face | Manufacturer standard |
| Flange standard | ASME B16.5; JIS; PN (DIN) |
| Testing | API 598 |
| Options | Screen mesh to requirement; PTFE or flexible graphite gasket; API 607 fire-safe design |
Materials
- Body and bonnet: WCB, CF8 or CF8M
- Screen: 304 or 316
- Gaskets: PTFE (flexible graphite on request)
- Bolts and nuts: 304
- Plug: 304 or 316
Applications
- Pump, meter and control valve protection
- Petrochemical and refinery lines
- Water and wastewater treatment
- Power plant boiler feed and cooling water
- HVAC and food and beverage transfer lines
Standards and certification
Designed to ASME B16.34, with flanges to ASME B16.5, face to face to manufacturer standard and inspection and testing to API 598 according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-VLV-111
Data sheet
- Product type
- Y-strainer / flanged
- Size range
- 1/2 to 24 in (DN15 to DN600)
- Body material
- CF8 / CF8M / WCB
- Pressure class
- Class 150 / 300 / 600; JIS 10K / 20K; PN16 / 25
- Temperature range
- -29 to +425 °C
- Screen
- 304 / 316; 40 mesh standard
