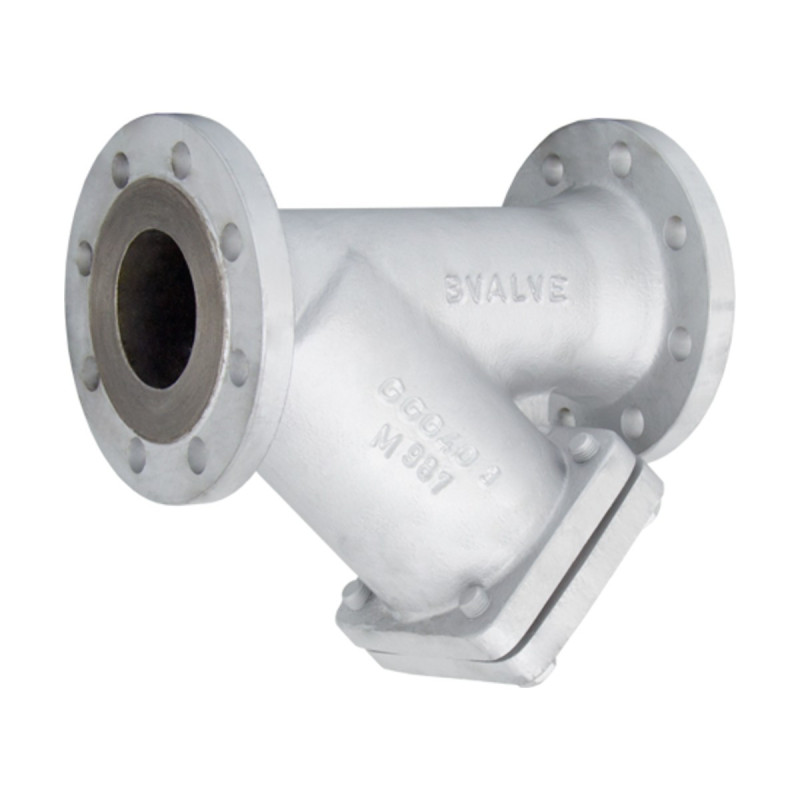

BVALVE Flanged Y Strainer BV12064 PN16 Nodular Iron / BV12065 PN40 Carbon Steel (DN15 to DN300)
Flanged Y type strainers protecting pumps, valves and equipment from solids and contaminants: BV12064 in nodular cast iron PN16 and BV12065 in carbon steel PN40, DN15 to DN300. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
BVALVE flanged Y type strainers stop pipelines and equipment from blockage by filtering foreign matter such as solids and contaminants. They protect pump suction inlets, valves and pipeline equipment and help avoid costly shutdowns.
Two versions are available: BV12064 in nodular cast iron with PN16 flanges, and BV12065 in carbon steel with PN40 flanges.
Key features
- Y pattern body with removable cover for screen access
- Stainless steel screen (AISI 304 on BV12064, AISI 316 on BV12065)
- Graphite body gasket
- Drain plug on the cover
- Face to face to EN 558-1
- BV12065 finished with high temperature paint (up to 600 °C)
Technical data
| Models | BV12064 (nodular cast iron, PN16); BV12065 (carbon steel, PN40) |
| Size range | DN15 to DN300 |
| Pressure rating | PN16 to EN 1092-2 (BV12064); PN40 to EN 1092-1 (BV12065) |
| Temperature range | -10 to +350 °C (BV12064); -10 to +400 °C (BV12065) |
| Body material | EN-GJS-400-18 nodular cast iron (BV12064); 1.0619 / ASTM A216 WCB (BV12065) |
| Screen | AISI 304 (BV12064); AISI 316 (BV12065) |
| Screen mesh | 1 mm (DN15 to DN50); 1.18 or 1.25 mm (DN65 to DN80); 1.7 or 1.6 mm (DN100 to DN300) |
| End connection | Flanged EN 1092 (type B1 on BV12065) |
| Face to face | EN 558-1 |
| Design / testing standard | EN 12516 design; EN 12266-1 P10 test |
| Example rating | BV12064: 16 bar at 120 °C, 11.2 bar at 350 °C; BV12065: 40 bar at 120 °C, 23.8 bar at 400 °C |
Materials
- BV12064 body and cover: nodular cast iron EN-GJS-400-18 (DN50 to DN300); EN-GJS-500-7 (DN15 to DN40)
- BV12064 screen: AISI 304; gasket: graphite; bolts and drain plug: 1.1181 / CK 35; sealing piece: PTFE (DN50 to DN300)
- BV12065 body: 1.0619 / ASTM A216 WCB; cover and drain plug: ASTM A105
- BV12065 screen: AISI 316; gasket: graphite and SS316; bolts: ASTM A193 B7; sealing piece: copper alloy
Applications
- Steam and thermal oil
- Water and hot water
- Compressed air
- Chemical fluids and LPG
- Protection of pumps, control valves, steam traps and pipeline equipment
Standards and certification
Designed to EN 12516 with flanges to EN 1092 and face to face to EN 558-1, and tested to EN 12266-1 P10, according to the manufacturer. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV12064-65
Data sheet
- Product type
- Flanged Y strainer
- Size range
- DN15 to DN300
- Pressure rating
- PN16 / PN40
- Body material
- Nodular cast iron / carbon steel WCB
- Temperature range
- -10 to +400 °C
- Screen
- Stainless steel AISI 304 / AISI 316
