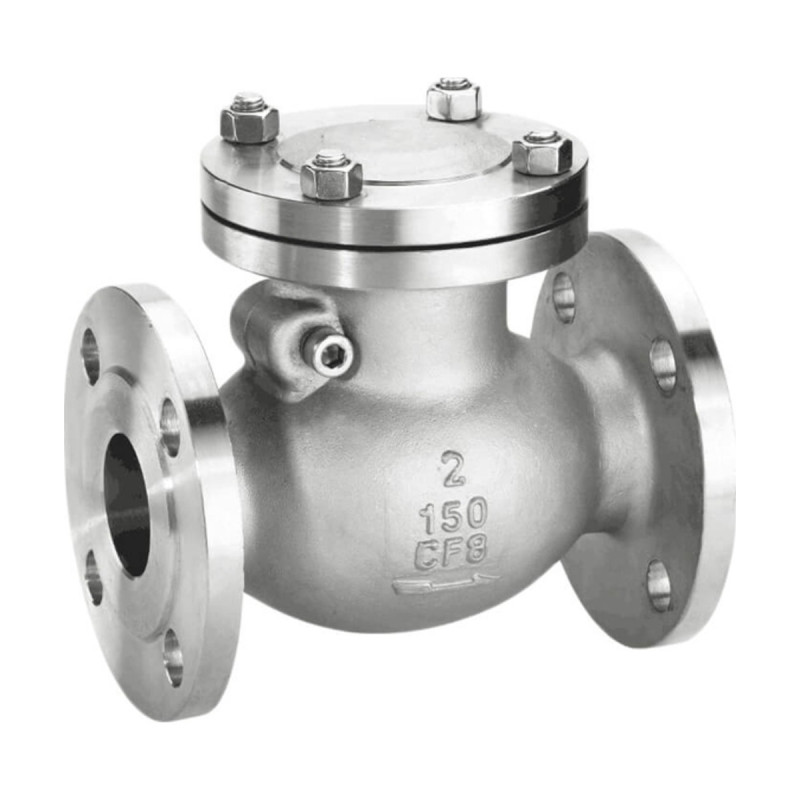

Flanged Swing Check Valve (ANSI 150 to 600, JIS 10K / 20K, GB PN16 / 40, 1/2 to 24 in)

The flanged swing check valve prevents reverse flow with a hinged disc that opens under forward flow and closes against the seat when flow stops or reverses. It has a bolted bonnet giving access to the disc and arm.

The valve is cast in WCB carbon steel with 13Cr trim or in CF8 / CF8M stainless steel and is offered with ASME, JIS and GB flanges.

Key features

• Swing disc on arm and pin, bolted bonnet
• WCB+13Cr, CF8 or CF8M body and disc
• ASME Class 150 / 300 / 600, JIS 10K / 20K and GB PN16 / PN40 versions
• Flanged ends with standard face to face
• 100% pressure tested, dimension checked and PMI tested before delivery

Technical data

Materials

• Body, bonnet and arm: WCB, CF8 or CF8M
• Disc: WCB+13Cr, CF8 or CF8M
• Pin: 35 steel, 304 or 316; washer PTFE
• Gasket: PTFE or 304 + graphite
• Bolts and nuts: 35CrMo / 45 steel or 304

Applications

• Pump discharge and backflow protection in oil, gas and process lines
• Water supply and water treatment systems
• Chemical and petrochemical plants
• Steam and cooling water circuits

Standards and certification

Designed to ASME B16.34, BS 1868 and API 6D (ASME version) or GB/T 12236 (GB version), with flanges to ASME B16.5, JIS or JB/T 79.1, face to face to ASME B16.10, JIS B2002 or GB/T 12236 and inspection to API 598 according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.

Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.

Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
