Flanged Globe Valve (Cast Steel / Stainless, Class 150 to 600, JIS 10K / 20K, 1/2 to 24 in)
OS&Y rising stem globe valve for throttling and shut-off, cast WCB or stainless CF8 / CF8M body, Stellite faced disc, ASME Class 150 to 600, JIS 10K / 20K or GB PN16 / 40 flanges.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

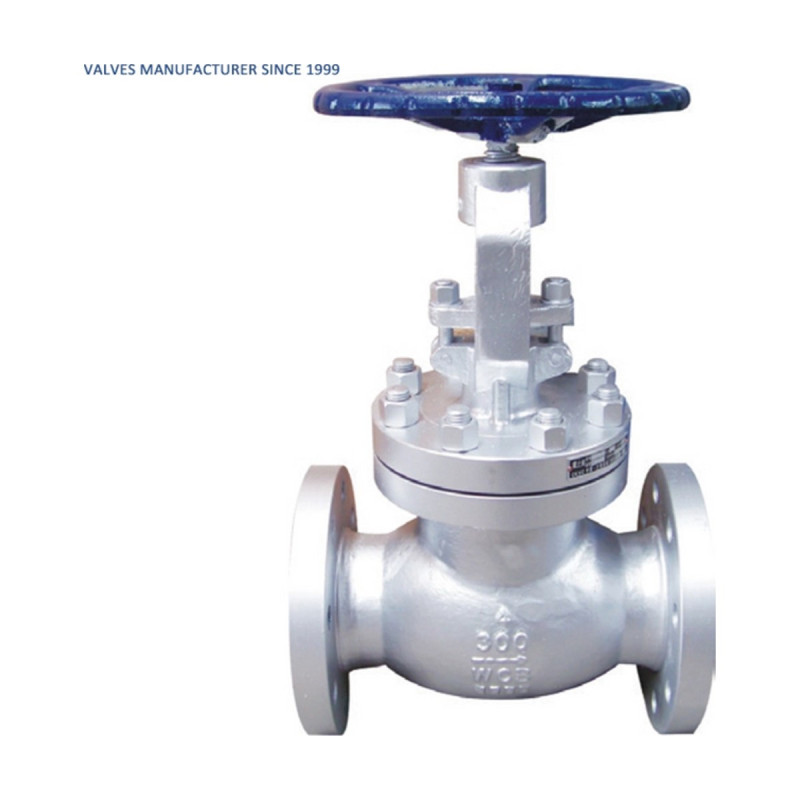

The flanged globe valve regulates and isolates flow with a disc moving perpendicular to the seat, giving precise throttling and tight shut-off. It has an outside screw and yoke (OS&Y) rising stem and a bolted bonnet.
Bodies are cast in WCB carbon steel or CF8 / CF8M stainless steel, with 13Cr or Stellite faced discs, and are available with ASME, JIS and GB flanges.
Key features
- OS&Y rising stem design with bolted bonnet
- Disc faced with 13Cr or Stellite (STL) for seat durability
- Good throttling capability and tight shut-off
- ASME Class 150 / 300 / 600, JIS 10K / 20K and GB PN16 / PN40 versions
- Handwheel, bevel gear, pneumatic or electric operation
- Pressure test, dimension check and PMI test before delivery
Technical data
| Type | Globe valve; OS&Y rising stem; bolted bonnet |
| Size range | 1/2 to 24 in (DN15 to DN600); catalogue tables 1/2 to 12 in (DN15 to DN300) |
| Pressure class | ASME Class 150 / 300 / 600; JIS 10K / 20K; GB PN16 (2-1/2 to 12 in) / PN40 (1/2 to 2 in) |
| Temperature range | -20 to +425 °C |
| Body material | WCB / CF8 / CF8M; CF3 / CF3M / LCB on request; SCPH2 / SCS13 / SCS14 (JIS) |
| Trim / seat | Disc WCB+13Cr/STL, 304/STL or 316/STL; stem 13Cr, 304 or 316 |
| End connection | Flanged RF / FF / RTJ; welding ends on request |
| Operation | Handwheel; bevel gear; pneumatic or electric actuator |
| Design standard | ASME B16.34 / BS 1873 / API 623; JIS B2071; GB/T 12235 |
| Face to face | ASME B16.10; JIS B2002 |
| Flange standard | ASME B16.5; JIS B2220; JB/T 79 / GB/T 9113 |
| Testing | API 598; API 623; pressure test, dimension check and PMI test |
Materials
- Body and bonnet: WCB, CF8 or CF8M (SCPH2 / SCS13 / SCS14 for JIS)
- Disc: WCB+13Cr/STL, 304/STL or 316/STL
- Stem: 13Cr (20Cr13), 304 or 316
- Gasket: SS304 + graphite or PTFE
- Packing: PTFE or flexible graphite
- Stem nut: bronze; handwheel: ductile iron (FCD) or WCB
Applications
- Oil and gas, refinery and petrochemical units
- Chemical processing with corrosive media
- Steam and water in power plants
- Water and wastewater treatment
Standards and certification
Designed to ASME B16.34, BS 1873 and API 623 (ASME version), JIS B2071 (JIS version) or GB/T 12235 (GB version), with flanges to ASME B16.5, JIS B2220 or JB/T 79 / GB/T 9113, face to face to ASME B16.10 or JIS B2002 and inspection to API 598 according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-VLV-104
Data sheet
- Size range
- 1/2 to 24 in (DN15 to DN600)
- Body material
- WCB / CF8 / CF8M
- Valve type
- Globe / OS&Y rising stem
- Pressure class
- Class 150 / 300 / 600; JIS 10K / 20K; PN16 / 40
- Design standard
- ASME B16.34 / BS 1873 / API 623
- Trim
- 13Cr / Stellite faced disc
