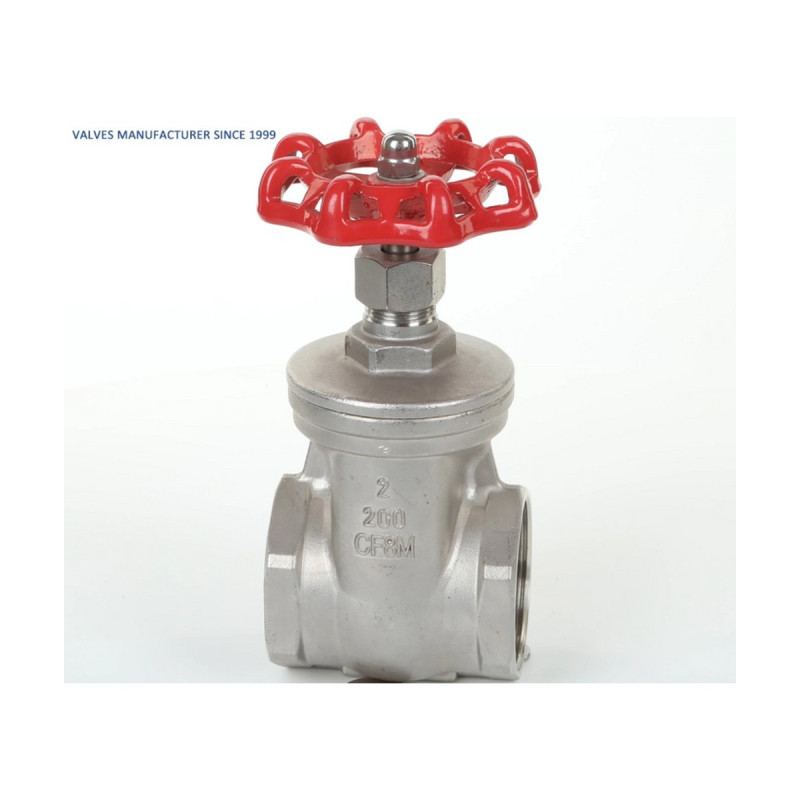

Threaded Gate Valve 200 WOG (Stainless / WCB, NPT / BSP, 1/2 to 2 in)
Investment cast threaded gate valve, non-rising stem, 200 WOG (PN16), CF8, CF8M or WCB body, female NPT, BSP or DIN threads or socket weld ends, 1/2 to 2 in.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The threaded gate valve is a compact investment cast wedge gate valve with female threaded or socket weld ends for small bore isolation duties. The straight-through bore gives low pressure drop when fully open and the valve can be installed for flow in either direction.
It is rated 200 WOG (PN16) and operated by a handwheel on a non-rising stem.
Key features
- Investment cast body, bonnet and wedge disc
- Non-rising stem with handwheel
- Straight-through bore with low flow resistance; bidirectional
- Female threads to ASME B1.20.1 (NPT), DIN 259 / DIN 2999, BS 21, ISO 228-1 and ISO 7-1
- Socket weld ends to ASME B16.11 available
- PTFE gasket and packing
Technical data
| Type | Wedge gate valve; non-rising stem; threaded bonnet |
| Size range | 1/2 to 2 in (DN15 to DN50); up to 4 in (DN100) listed by the manufacturer |
| Pressure class | 200 WOG (PN16) |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 (304) / CF8M (316); CF3 on request |
| Trim / seat | Wedge disc CF8 or CF8M; stem 304 or 316 |
| End connection | Female thread NPT (ASME B1.20.1) / BSP / DIN 259 / DIN 2999 / ISO 228-1 / ISO 7-1; socket weld ASME B16.11 |
| Operation | Handwheel |
| Testing | Pressure test before delivery |
Materials
- Body and bonnet: WCB, CF8 or CF8M
- Wedge disc: CF8 or CF8M
- Stem, washer and circlip: 304 or 316
- Gasket and packing: PTFE
- Gland, flat pad and nut: 304
- Handwheel: ZL101 aluminium alloy
Applications
- Water supply and HVAC systems
- Oil and gas utility and auxiliary lines
- General industrial process piping, small bore
Standards and certification
Designed to ASME B1.20.1, DIN 259 / DIN 2999, BS 21, ISO 228-1 and ISO 7-1 thread standards and ASME B16.11 for socket weld ends according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-VLV-103
Data sheet
- Size range
- 1/2 to 2 in (DN15 to DN50)
- Body material
- WCB / CF8 / CF8M
- Valve type
- Wedge gate / non-rising stem
- Pressure class
- 200 WOG (PN16)
- End connection
- Female thread NPT / BSP; socket weld
- Temperature range
- -20 to +180 °C
