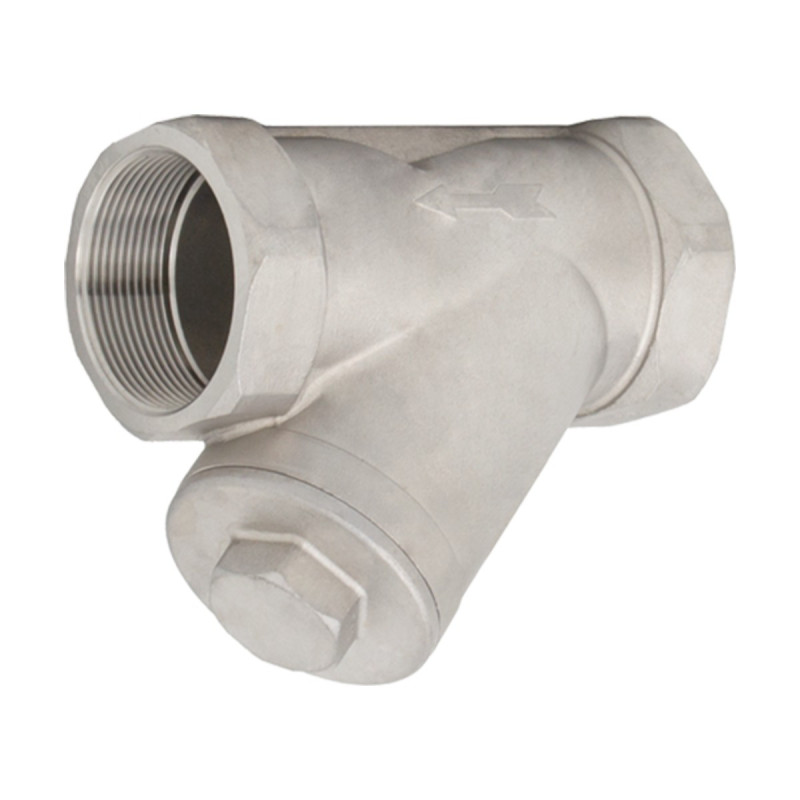

BVALVE Threaded Y Strainer BV800, Stainless Steel CF8M PN40 (1/2 to 2 in)
Compact Y type strainer in investment cast stainless steel A351 CF8M with SS316 screen and BSP female threaded ends, PN40, -10 to +210 °C, sizes 1/2 to 2 in. Made in Spain.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The BVALVE BV800 is a threaded Y type strainer that protects pump suction inlets and pipeline equipment from blockage by filtering solids and contaminants.
Body and cap are investment cast in stainless steel A351 CF8M, with a screwed-in cap and an SS316 screen.
Key features
- Investment cast stainless steel body
- Screwed-in cap for screen access
- SS316 stainless steel screen
- PTFE joint gasket
- BSP female threaded ends
- Compact and lightweight (0.2 to 1.63 kg)
Technical data
| Model | BV800 |
| Size range | 1/2 to 2 in |
| Pressure rating | PN40 |
| Temperature range | -10 to +210 °C |
| Body material | Stainless steel A351 CF8M, investment casting |
| Screen | SS316 |
| Gasket | PTFE |
| End connection | Threaded BSP female |
| Face to face | 64 mm (1/2 in) to 140 mm (2 in) |
| Cap | Screwed-in, A351 CF8M |
Materials
- Body: stainless steel A351 CF8M
- Cap: stainless steel A351 CF8M
- Screen: stainless steel SS316
- Joint gasket: PTFE
Applications
- Steam and thermal oil
- Water and hot water
- Compressed air
- Chemical fluids and LPG
- Protection of pumps and small bore pipeline equipment
Standards and certification
PN40 rating according to the manufacturer. The manufacturer states that all its products are submitted to pressure and tightness tests. Certificates and test reports are provided with the quotation.
Supplied on quotation and configured to your requirements (size, pressure rating, end connection, materials, operator). Data sheet and dimension tables available on request.
BVALVE-BV800
Data sheet
- Product type
- Threaded Y strainer
- Size range
- 1/2 to 2 in
- Pressure rating
- PN40
- Body material
- Stainless steel A351 CF8M
- End connection
- BSP female thread
- Temperature range
- -10 to +210 °C
