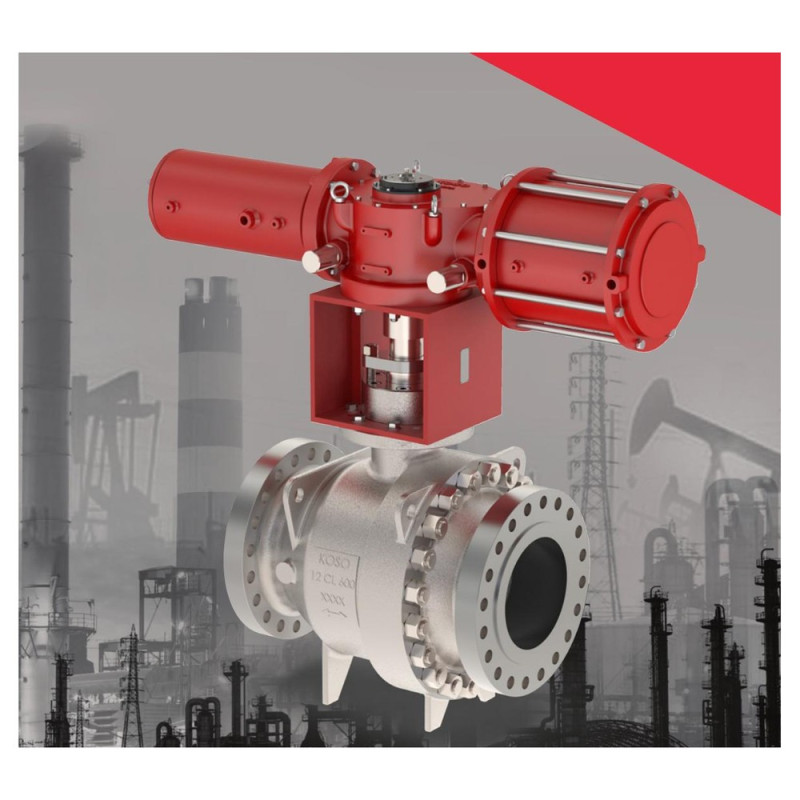

KOSO 350W / 350K Metal and Soft Seated Ball Valves
Floating and trunnion mounted quarter-turn ball valves, metal seated (350W, HVOF coated) or soft seated (350K), up to 36", ASME Class 150 to 2500, fire safe to API 607 / API 6FA.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The KOSO 350 series are high performance quarter-turn ball valves in floating and trunnion mounted designs. The 350W is metal seated with HVOF coated ball and seats; the 350K is soft seated with a secondary metal-to-metal seal.
Available up to 36" in ASME Classes 150 to 2500 with multiple end connections, materials and trims. Manufactured by KOSO India.
Key features
- Blowout-proof stem
- Fire safe design tested to API 607 / API 6FA
- Anti-static device between ball, stem and body
- Self-relieving seats on trunnion valves
- HVOF hard coatings on metal seated versions
- On-off or control service with pneumatic, hydraulic or electric actuators
Standard specification
| Models | 350W metal seated, 350K soft seated |
|---|---|
| Construction | Floating and trunnion mounted |
| Sizes | Up to 36" |
| Ratings | ASME Class 150 to 2500 |
| Fire safe | API 607 / API 6FA |
| Coatings | HVOF tungsten carbide / chromium carbide (350W) |
Applications
Modulating and on-off service on liquids, gases and slurries in oil and gas, chemical, petrochemical, pulp and paper, water and power plants.
Documentation
The manufacturer brochure is available in the attachments. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-350
Data sheet
- Manufacturer series
- 350W / 350K
- Product type
- Metal and soft seated ball valve
- Size range
- Up to 36 in
- Origin
- KOSO group
- Rating / output
- ASME 150 to 2500
