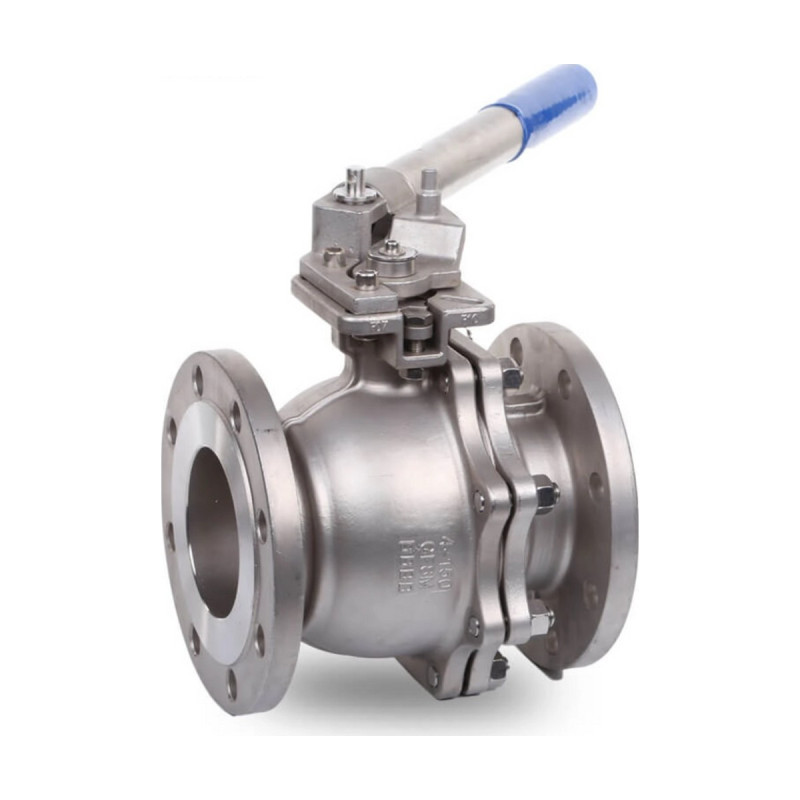

2-PC Flanged Ball Valve with Deadman Handle (ANSI Class 150)
Two-piece full port flanged ball valve (ASME Class 150) fitted with a deadman (spring return) handle that closes the valve automatically when the operator releases the lever.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
This valve is the 2-PC flanged ball valve fitted with a deadman handle. The spring return handle returns the valve to the closed position when released, a common safety requirement on loading, sampling and drain points. Body, trim and standards are those of the 2-PC ASME flanged series.
Key features
- Deadman (spring return) handle for automatic closing on release
- Two-piece floating ball body, full port
- Blow-out proof stem
- Anti-static device (option)
- API 607 fire-safe design available as an option
Technical data
| Type | 2-piece floating ball valve with deadman handle |
| Pressure class | ASME Class 150 |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 / CF8M |
| Trim / seat | Ball CF8 / CF8M; stem 304 / 316; seat PTFE |
| End connection | Flanged, ASME B16.5 |
| Operation | Deadman spring return handle |
| Design standard | ASME B16.34, API 608, API 6D |
| Face to face | ASME B16.10 |
| Testing | API 598 |
Materials
- Body and bonnet: WCB, CF8 or CF8M
- Ball: CF8 or CF8M
- Stem: 304 or 316
- Seat and packing: PTFE
Applications
- Tank truck and rail car loading and unloading
- Sampling and drain points
- Any manual service where the valve must close when unattended
Standards and certification
Designed to ASME B16.34, API 608, API 6D, ASME B16.5, ASME B16.10 and API 598 according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-BV-104
Data sheet
- Body material
- WCB / CF8 / CF8M
- Valve type
- Floating ball / 2-piece / full port
- Pressure class
- ASME Class 150
- End connection
- Flanged RF
- Operation
- Deadman spring return handle
