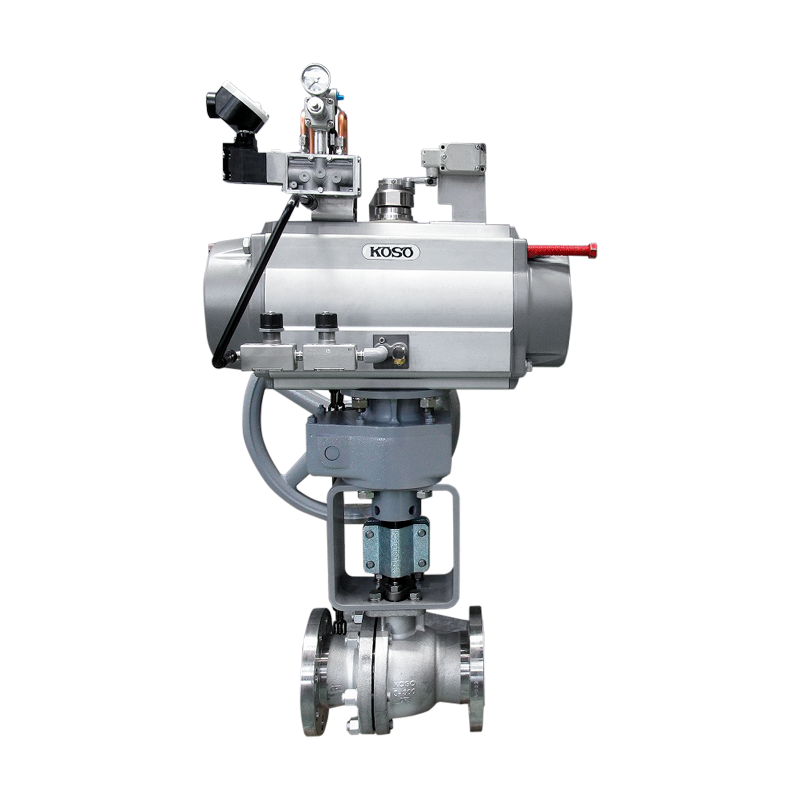

KOSO 301K / 332K Straight Through Ball Valve
Full bore and reduced bore automated ball valves for on-off service on liquids, gases and slurries, 1/2" to 18", ASME Class 150 to 300, jacketed versions available.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer
The KOSO 301K and 332K series are automated quarter-turn ball valves. When fully open, the bore equals the pipeline bore and flow resistance is negligible, making them ideal for on-off service on liquids, gases and slurries.
Full bore, reduced bore and steam jacketed versions are available.
Key features
- Full bore with negligible pressure loss
- Reduced bore and jacketed versions
- PTFE or reinforced PTFE seats, tight shut-off
- Pneumatic cylinder or electric motor actuators
Standard specification
| Body type | 301K / 332K |
|---|---|
| Full bore size | 1/2"(15A) to 16"(400A) / 1/2"(15A) to 8"(200A) |
| Reduced bore size | 4" × 3" to 18" × 16" / - |
| Jacketted valve size | 11/2" × 1/2" × 1/2" to 10" × 8" × 6" / - |
| Body rating | ANSI Class 150 to 300, JIS 10K to 40K |
| Fluid temperature | -45 to +250°C / -20 to +230°C |
| Connections | Flanged (RF) |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. / SCPH2/WCB, SCS14A/CF8M |
| Ball materials | SUS316/Buffing, SCS13A/Buffing, SCS14A/Buffing / SUS316/Buffing, SCS14A/Buffing |
| Seal ring materials | Pure Teflon, Reinforced Teflon |
| Seat Leakage | Tight shut off |
| Actuator combination | 6300RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator 3200RA, 3300RA, 3400RB: Electric Motor Actuator |
Applications
Modulating and on-off service on liquids, gases and slurries in oil and gas, chemical, petrochemical, pulp and paper, water and power plants.
Documentation
Detailed datasheets are available on request. Send us your process data (fluid, flow, pressures, temperature, line size and rating) with your quotation request so that KOSO can size and select the right model.
KOSO-301K
Data sheet
- Manufacturer series
- 301K / 332K
- Product type
- Straight through ball valve
- Size range
- 1/2 in to 18 in
- Origin
- KOSO group
- Rating / output
- ASME 150 to 300
