Three-Way Ball Valve T-Port or L-Port (Flanged 1/2 to 6 in or Threaded 1/4 to 3 in)
Three-way reduced port ball valve with T-port or L-port ball for diverting and mixing, with ISO 5211 mounting pad. Flanged (Class 150/300, PN16/40, JIS 10K) or threaded (1000 WOG) ends.
Certified equipment
ATEX / IECEx documentation supplied where stated
Worldwide delivery
Incoterms agreed in each quotation
Quotation first
Price, lead time and certificates in every offer

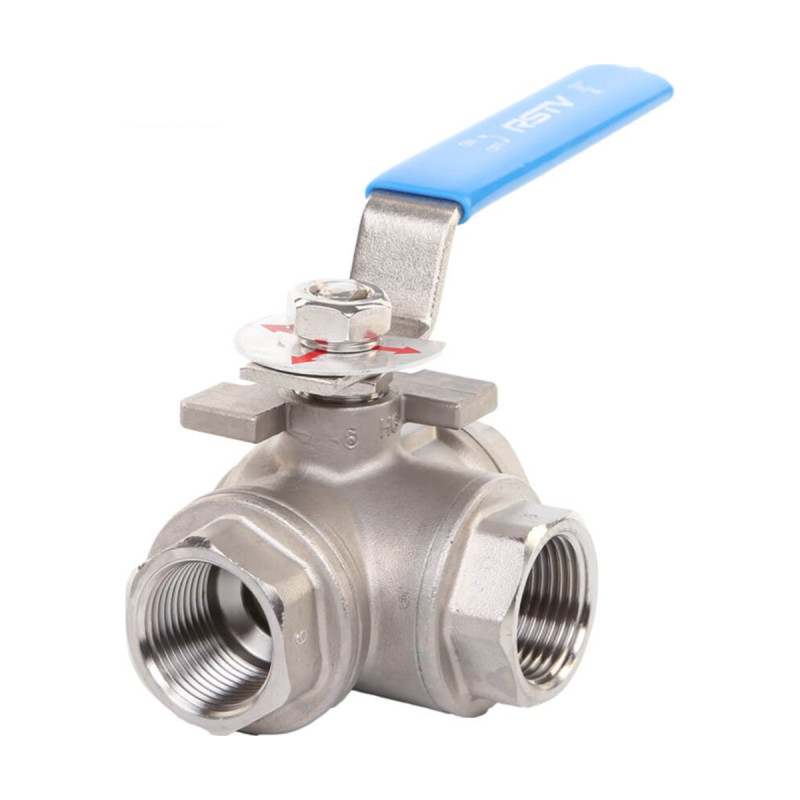

The three-way ball valve uses a T-port or L-port ball to divert, mix or shut off flow between three ports. Four seats and a 360° rotary handle allow the flow patterns to be selected. It is available with flanged ends from 1/2 to 6 in or threaded ends from 1/4 to 3 in, both with ISO 5211 direct mounting pad.
Key features
- T-port or L-port ball (X-port also listed for the flanged version)
- Four-seat design; 360° rotary handle
- Investment cast body
- Blow-out proof stem and live-loaded packing
- ISO 5211 direct mounting pad
- Anti-static device and locking handle (options)
- Automation accessories (option)
Technical data
| Type | 3-way floating ball valve, reduced port, T-port / L-port |
| Size range | Flanged 1/2 to 6 in (DN15 to DN150); threaded 1/4 to 3 in (DN6 to DN80) |
| Pressure class | Flanged: Class 150 / 300, PN16 / PN40, JIS 10K; threaded: 1000 WOG (PN63) |
| Temperature range | -20 to +180 °C |
| Body material | WCB / CF8 / CF8M |
| Trim / seat | Ball CF8 / CF8M; stem 304 / 316; seat PTFE |
| End connection | Flanged; or threaded NPT (ASME B1.20.1), DIN 259 / DIN 2999, BS 21, ISO 228-1, ISO 7-1 |
| Operation | Lever with 360° rotation; pneumatic or electric actuator |
| Design standard | ASME B16.34, API 608, API 6D; EN 1983, EN 12516-1; JIS B2071 (flanged) |
| Flange standard | ASME B16.5; EN 1092-1 PN16/40; JIS B2220 |
| Testing | API 598; EN 12266-1; JIS B2003 |
| Options | Anti-static device, locking handle, automation package |
Materials
- Body and bonnet: WCB, CF8 or CF8M
- Ball: CF8 or CF8M
- Stem: 304 or 316
- Seat and packing: PTFE; stem washer PTFE + 25% GF; O-ring FPM
- Handle: 304 + PVC (threaded) or WCB / CF8 (flanged)
Applications
- Flow diverting and mixing in process lines
- Switching between two supply or discharge lines
- Chemical, water and general industrial services
Standards and certification
Designed to ASME B16.34, API 608, API 6D, ASME B16.5 and API 598 (ANSI flanged version), EN 1983 / EN 12516-1 / EN 1092-1 / EN 12266-1 (DIN version) and JIS B2071 / B2220 / B2003 (JIS version) according to the manufacturer. The manufacturer declares ISO 9001 certification and CE marking; certificates and test reports (API 598 pressure test, material certificates) are provided on request with the quotation.
Supplied on quotation and configured to your requirements (size, pressure class, end connection, materials, operator). Dimension tables available on request.
Supplied from a qualified manufacturer selected by ASSINOV. Origin, manufacturer details and certificates are provided with our quotation.
AG-BV-106
Data sheet
- Size range
- Flanged 1/2 to 6 in; threaded 1/4 to 3 in
- Body material
- WCB / CF8 / CF8M
- Valve type
- 3-way / T-port or L-port / reduced port
- Pressure class
- Class 150/300; PN16/40; JIS 10K; 1000 WOG
- End connection
- Flanged or threaded NPT / BSP
